Specifications
| Type |
Volt (V) |
Force |
Ferquency (r/min) |
Excitation power (kW) |
Curent (A max) |
Weight (kg) |
Size | |
| kg | kN | |||||||
| MVE100/3-DC | 24V | 100 | 1 | 3600 | 0.1 | 4 | 5.5 | 23A0 |
| MVE200/3-DC | 24V | 200 | 2 | 3000 | 0.16 | 7 | 6.5 | 23A0 |
In industrial automation and mechanical systems, vibration motors are essential for enabling precise motion, material handling, and operational efficiency. The vibration motor is engineered to deliver consistent, high-frequency vibrations that drive equipment ranging from feeders and conveyors to compacting and screening machinery. With robust construction, energy-efficient design, and low maintenance requirements, vibration motors provide a reliable solution for demanding industrial applications.
keywords：motor,purpose motor,special type motor series

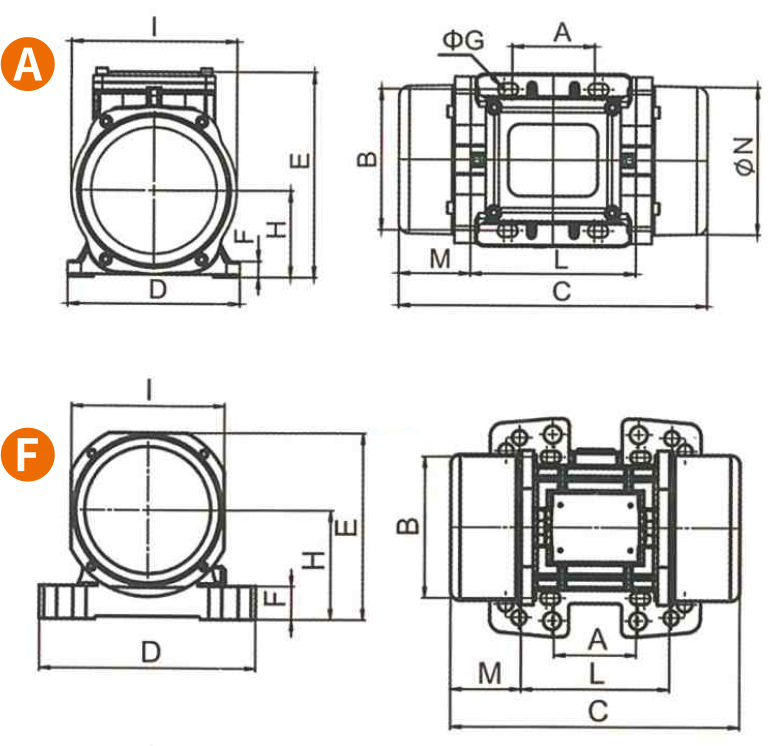

Installation size
| Type | A | B | C | D | E | F | φG | H | I | L | M | φN | Cable Gland | Fig |
| MVE100/3-DC | 62-74 | 106 | 221 | 162 | 142 | 26 | 9 | 50 | 116 | 112 | 54.5 | 107 | M20X1.5 | A |
| MVE200/3-DC | 62-74 | 106 | 221 | 162 | 142 | 26 | 9 | 82 | 116 | 112 | 54.5 | 107 | M20X1.5 | F |
DC vibration motor
