YC Series Capacitor Start Induction Motor
+
  • YC Series Capacitor Start Induction Motor
Product details Installation Dimension Mounting arrangements

  PERFORMANCE DATA                                          220V    50Hz

Type Power
kW		 Rated current
A		 Speed
r/min		 Eff
%		 Power factor Locked rotor torque
Rated torque		 Locked rotor current
A
YC711-2 0.18 1.9 2800 60 0.72 3.0 12
YC801-4 0.25 3.1 1400 58 0.63 2.8 15
YC802-4 0.37 4.2 1400 62 0.64 2.5 21
YC90S-2 0.75 6.1 2800 70 0.80 2.5 37
YC90L-2 1.1 8.7 2800 72 0.80 2.5 60
YC90S-4 0.55 5.5 1400 66 0.69 2.5 29
YC90L-4 0.75 6.9 1400 68 0.73 2.5 37
YC90S-6 0.25 4.2 950 54 0.50 2.5 20
YC90L-6 0.37 5.3 950 58 0.55 2.5 25
YC100L1-2 1.5 11.4 2850 74 0.81 2.5 80
YC100L2-2 2.2 16.5 2850 75 0.81 2.2 120
YC100L1-4 1.1 9.6 1440 71 0.74 2.5 60
YC100L2-4 1.5 12.5 1440 73 0.75 2.5 80
YC100L1-6 0.55 6.9 950 60 0.60 2.5 35
YC100L2-6 0.75 9.0 950 61 0.62 2.2 45
YC112M-2 3 21.9 2850 76 0.82 2.2 150
YC112M-4 2.2 17.9 1400 74 0.76 2.2 120
YC112M-6 1.1 12.2 950 63 0.65 2.2 70
YC132S-2 3.7 26.6 2850 77 0.82 2.2 175
YC132S-4 3 23.6 1400 75 0.77 2.2 150
YC132M-4 3.7 28.4 1400 76 0.79 2.2 175
YC132S-6 1.5 14.8 950 68 0.68 2.0 90
YC132M-6 2.2 20.4 950 70 0.70 2.0 130



keywords：motor,purpose motor,special type motor series

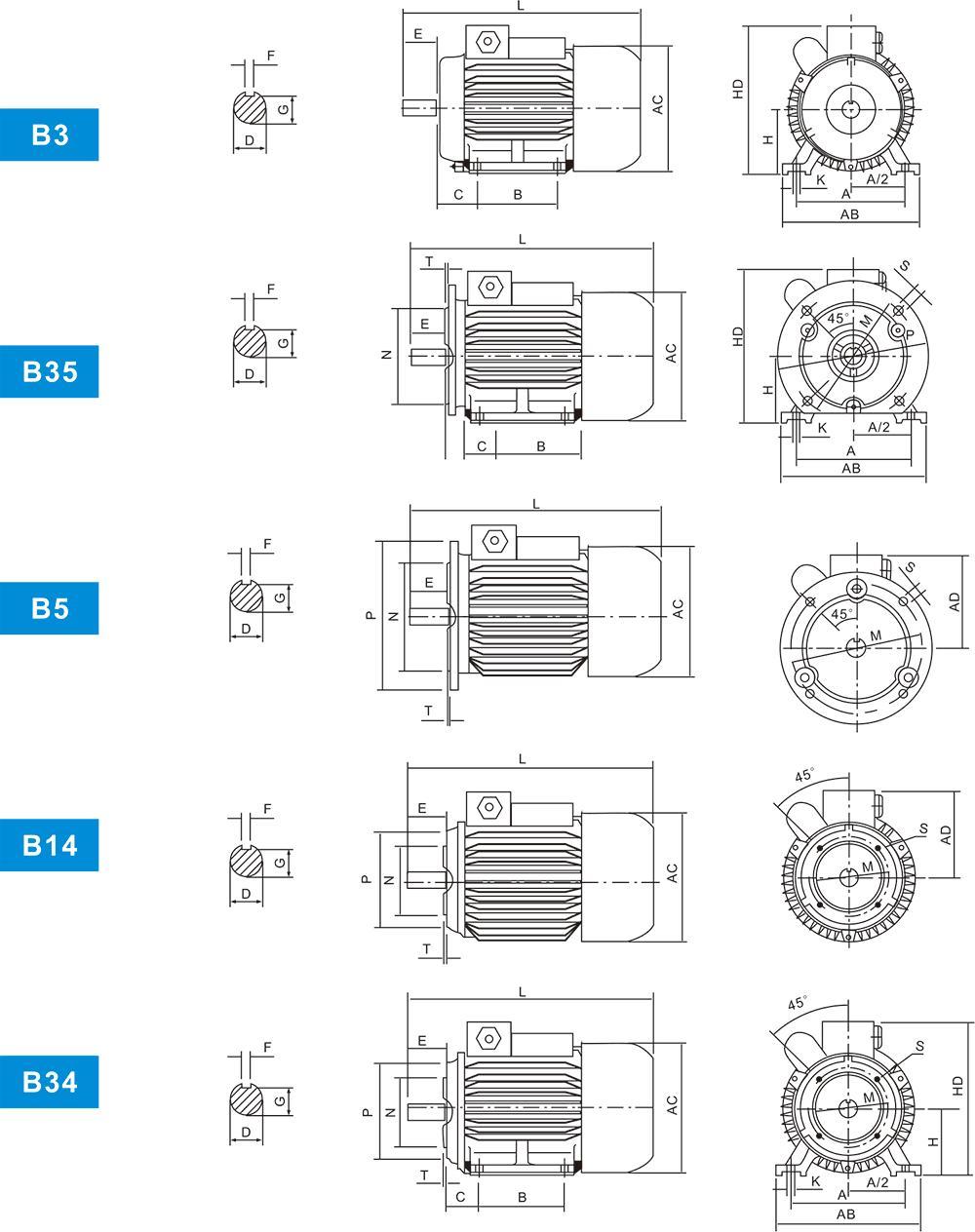

  OVERALL&INSTALLATION DIMENSION(MM)





Mounting Dimension Overall Dimension
Frame IMB3   IMB14    IMB34 IMB5      IMB35 MB3
A A/2 B C D E F G H K M N P R S T M N P R S T AB AC AD AE HD L
71  112  56  90  45  14  30  5  11  71  7  85  70  105  0  M6 2.5  130  110  160  一 10  3.5  145  145  140  95  180  255
80  125  62.5  100  50  19  40  6  15.5  80  10  110  80  120  0  M6 3  165  130  200  0  12  3.5  160  165  150  110  200  295
90S 140  70  100  56  24  50  8  20  90  10  115  95  140  0  M8 3  165  130  200  0  12  3.5  180  185  160  120  220  370
90L 140  70  125  56  24  50  8  20  90  10  115  95  140  0  M8 3  165  130  200  0  12  3.5  180  185  160  120  220  400
100L 160  80  140  63  28  60  8  24  100  12  一 一 一 一 一 — 215  180  250  0  15  4  205  200  180  130  260  430
112M 190  95  140  70  28  60  8  24  112  12  一 一 一 一 一 — 215  180  250  0  15  4  245  250  190  140  300  455
132S 216  108  140  89  38  80  10  33  132  12  一 一 一 一 一 一 265  230  300  0  15  4  280  290  210  155  350  525
132M 216  108  178  89  38  80  10  33  132  12  一 一 一 一 一 一 265  230  300  0  15  4  280  290  210  155  350  565

The other dimensions of IMB14, IMB34, and IMB 5 are the same as those of IMB3.

YC Series Capacitor Start Induction Motor
+
  • YC Series Capacitor Start Induction Motor

YC Series Capacitor Start Induction Motor

Product application areas: Air compressors, refrigerator, remedy apparatus and machine tools, etc. Product features: Large starting torque, excellent performance, energy saving and electricity saving, reliable structure and strong versatility. The rated power supply of the basic series of motors is 220V/50Hz, and 110V/220V, 110V, 240V, 60Hz and other motors can be provided according to the needs. Cast aluminum or cast iron housings can be used.
