PERFORMANCE DATA 380V 50Hz

Type	Power kW	Current A	Speed r/min	Eff %	Power factor	Locked rotor torque Rated torque	Locked rotor current Rated current	Breakdown torque Rated torque
Synchronous speed 3000r/min
YE2-63M1-2	0.18	0.53	2720	65.0	0.80	2.2	5.5	2.2
YE2-63M2-2	0.25	0.69	2720	68.0	0.81	2.2	5.5	2.2
YE2-71M1-2	0.37	0.99	2740	70.0	0.81	2.2	6.1	2.2
YE2-71M2-2	0.55	1.4	2740	73.0	0.82	2.2	6.1	2.3
YE2-80M1-2	0.75	1.8	2840	75.0	0.83	2.2	6.1	2.3
YE2-80M2-2	1.1	2.6	2840	77.0	0.84	2.2	7.0	2.3
YE2-90S-2	1.5	3.4	2845	79.0	0.84	2.2	7.0	2.3
YE2-90L-2	2.2	4.9	2845	81.0	0.85	2.2	7.0	2.3
YE2-100L-2	3	6.3	2860	83.0	0.87	2.2	7.5	2.3
YE2-112M-2	4	8.1	2880	85.0	0.88	2.2	7.5	2.3
YE2-132S1-2	5.5	11.0	2900	86.0	0.88	2.2	7.5	2.3
YE2-132S2-2	7.5	14.9	2900	87.0	0.88	2.2	7.5	2.3
YE2-160M1-2	11	21.3	2930	88.0	0.89	2.2	7.5	2.3
YE2-160M2-2	15	28.8	2930	89.0	0.89	2.2	7.5	2.3
YE2-160L-2	18.5	34.7	2930	90.0	0.90	2.2	7.5	2.3
YE2-180M-2	22	41.0	2940	90.0	0.90	2.0	7.5	2.3
YE2-200L1-2	30	55.5	2950	91.2	0.90	2.0	7.5	2.3
YE2-200L2-2	37	67.9	2950	92.0	0.90	2.0	7.5	2.3
YE2-225M-2	45	82.3	2960	92.3	0.90	2.0	7.5	2.3

PERFORMANCE DATA 380V 50Hz

Type	Power kW	Current A	Speed r/min	Eff %	Power factor	Locked rotor torque Rated torque	Locked rotor current Rated current	Breakdown torque Rated torque
Synchronous speed 3000r/min
YE2-250M-2	55	100	2965	92.5	0.90	2.0	7.5	2.3
YE2-280S-2	75	135	2970	93.0	0.90	2.0	7.5	2.3
YE2-280M-2	90	160	2970	93.8	0.91	2.0	7.5	2.3
YE2-315S-2	110	195	2975	94.0	0.91	1.8	7.1	2.2
YE2-315M-2	132	233	2975	94.5	0.91	1.8	7.1	2.2
YE2-315L1-2	160	279	2975	94.6	0.92	1.8	7.1	2.2
YE2-315L2-2	200	348	2975	94.8	0.92	1.8	7.1	2.2
YE2-335M-2	250	433	2980	95.3	0.92	1.6	7.1	2.2
YE2-355L-2	315	544	2980	95.6	0.92	1.6	7.1	2.2
YE2-400-2	355	621.7	2985	96.4	0.90	1.3	6.5	2.5
YE2-400-2	400	700.5	2985	96.4	0.90	1.3	6.5	2.5
YE2-400-2	450	788.1	2985	96.4	0.90	1.3	6.5	2.5
YE2-400-2	500	875.6	2985	96.4	0.90	1.3	6.5	2.5
YE2-400-2	560	968.9	2985	96.5	0.91	1.2	6.5	2.5
YE2-450-2	560	968.9	2985	96.5	0.91	1.2	6.5	2.5
YE2-450-2	630	1090.0	2985	96.6	0.91	1.2	6.5	2.5
YE2-450-2	710	1227.2	2985	96.6	0.91	1.2	6.5	2.5
YE2-450-2	800	1382.7	2985	96.5	0.91	1.2	6.5	2.5
Synchronous speed 1500r/min
YE2-63M1-4	0.12	0.44	1310	57.0	0.72	2.1	4.4	2.2
YE2-63M2-4	0.18	0.62	1310	60.0	0.73	2.1	4.4	2.2
YE2-71M1-4	0.25	0.79	1330	65.0	0.74	2.1	5.2	2.2
YE2-71M2-4	0.37	1.12	1330	67.0	0.75	2.1	5.2	2.2
YE2-80M1-4	0.55	1.6	1390	71.0	0.75	2.4	5.2	2.3
YE2-80M2-4	0.75	2.0	1390	73.0	0.76	2.3	6.0	2.3
YE2-90S-4	1.1	2.9	1390	75.0	0.77	2.3	6.0	2.3
YE2-90L-4	1.5	3.7	1390	78.0	0.79	2.3	6.0	2.3
YE2-100L1-4	2.2	5.2	1410	80.0	0.81	2.3	7.0	2.3
YE2-100L2-4	3	6.8	1410	82.0	0.82	2.3	7.0	2.3
YE2-112M-4	4	8.8	1440	84.0	0.82	2.3	7.0	2.3
YE2-132S-4	5.5	11.8	1440	85.0	0.83	2.3	7.0	2.3
YE2-132M-4	7.5	15.6	1440	87.0	0.84	2.3	7.0	2.3
YE2-160M-4	11	22.3	1460	88.0	0.84	2.2	7.0	2.3
YE2-160L-4	15	30.1	1460	89.0	0.85	2.2	7.5	2.3
YE2-180M-4	18.5	36.1	1470	90.5	0.86	2.2	7.5	2.3
YE2-180L-4	22	42.7	1470	91.0	0.86	2.2	7.5	2.3
YE2-200L-4	30	57.6	1470	92.0	0.86	2.2	7.2	2.3
YE2-225S-4	37	69.9	1475	92.5	0.87	2.2	7.2	2.3
YE2-225M-4	45	84.7	1475	92.8	0.87	2.2	7.2	2.3
YE2-250M-4	55	103	1480	93.0	0.87	2.2	7.2	2.3
YE2-280S-4	75	140	1480	93.8	0.87	2.2	7.2	2.3
YE2-280M-4	90	167	1480	94.2	0.87	2.2	7.2	2.3
YE2-315S-4	110	201	1480	94.5	0.88	2.1	6.9	2.2
YE2-315M-4	132	240	1480	94.8	0.88	2.1	6.9	2.2
YE2-315L1-4	160	288	1480	94.9	0.89	2.1	6.9	2.2
YE2-315L2-4	200	359	1480	95.0	0.89	2.1	6.9	2.2
YE2-355M-4	250	443	1490	95.3	0.90	2.1	6.9	2.2

PERFORMANCE DATA 380V 50Hz

Type	Power kW	Current A	Speed r/min	Eff %	Power factor	Locked rotor torque Rated torque	Locked rotor current Rated current	Breakdown torque Rated torque
Synchronous speed 1500r/min
YE2-355L-4	315	556	1490	95.6	0.90	2.1	6.9	2.2
YE2-400-4	355	636.5	1485	96.3	0.88	1.6	6.5	2.5
YE2-400-4	400	717.2	1485	96.3	0.88	1.6	6.5	2.5
YE2-400-4	450	806.8	1485	96.3	0.88	1.6	6.5	2.5
YE2-400-4	500	895.5	1485	96.4	0.88	1.4	6.5	2.5
YE2-400-4	560	991.7	1485	96.4	0.89	1.4	6.5	2.5
YE2-400-4	630	1114.5	1485	96.5	0.89	1.4	6.5	2.5
YE2-450-4	630	1114.5	1485	96.5	0.89	1.4	6.5	2.5
YE2-450-4	710	1256.1	1485	96.6	0.89	1.4	6.5	2.5
YE2-450-4	800	1398.1	1485	96.6	0.9	1.4	6.5	2.5
YE2-450-4	900	1572.9	1485	96.4	0.9	1.4	6.5	2.5
Synchronous speed 1000r/min
YE2-71M1-6	0.18	0.74	850	56.0	0.66	1.9	4.0	2.0
YE2-71M2-6	0.25	0.95	850	59.0	0.68	1.9	4.0	2.0
YE2-80M¹-6	0.37	1.3	885	62.0	0.70	1.9	4.7	2.0
YE2-80M2-6	0.55	1.8	885	65.0	0.72	1.9	4.7	2.1
YE2-90S-6	0.75	2.3	910	69.0	0.72	2.0	5.5	2.1
YE2-90L-6	1.1	3.2	910	72.0	0.73	2.0	5.5	2.1
YE2-100L-6	1.5	3.9	920	76.0	0.75	2.0	5.5	2.1
YE2-112M-6	2.2	5.6	935	79.0	0.76	2.0	6.5	2.1
YE2-132S-6	3	7.4	960	81.0	0.76	2.1	6.5	2.1
YE2-132M1-6	4	9.8	960	82.0	0.76	2.1	6.5	2.1
YE2-132M2-6	5.5	12.9	965	84.0	0.77	2.1	6.5	2.1
YE2-160M-6	7.5	17.2	970	86.0	0.77	2.0	6.5	2.1
YE2-160L-6	11	24.2	970	87.5	0.78	2.0	6.5	2.1
YE2-180L-6	15	31.6	970	89.0	0.81	2.0	7.0	2.1
YE2-200L1-6	18.5	38.6	980	90.0	0.81	2.1	7.0	2.1
YE2-200L2-6	22	44.7	980	90.0	0.83	2.1	7.0	2.1
YE2-225M-6	30	59.3	980	91.5	0.84	2.0	7.0	2.1
YE2-250M-6	37	71.1	980	92.0	0.86	2.1	7.0	2.1
YE2-280S-6	45	85.9	980	92.5	0.86	2.1	7.0	2.0
YE2-280M-6	55	105	980	92.8	0.86	2.1	7.0	2.0
YE2-315S-6	75	142	985	93.5	0.86	2.0	7.0	2.0
YE2-315M-6	90	170	985	92.8	0.86	2.0	7.0	2.0
YE2-315L1-6	110	207	985	94.0	0.86	2.0	6.7	2.0
YE2-315L2-6	132	245	985	94.2	0.87	2.0	6.7	2.0
YE2-355M1-6	160	292	990	94.5	0.88	1.9	6.7	2.0
YE2-355M2-6	200	365	990	94.7	0.88	1.9	6.7	2.0
YE2-355L-6	250	455	990	94.9	0.88	1.9	6.7	2.0
YE2-400-6	280	555.1	990	95.8	0.8	1.8	6.5	2.5
YE2-400-6	315	608.0	990	96	0.82	1.8	6.5	2.5
YE2-400-6	355	685.2	990	96	0.82	1.8	6.5	2.5
YE2-400-6	400	761.2	990	96.2	0.83	1.6	6.5	2.4
YE2-400-6	450	856.3	990	96.2	0.83	1.6	6.5	2.4
YE2-400-6	500	949.5	990	96.4	0.83	1.6	6.5	2.5

PERFORMANCE DATA 380V 50Hz

Type	Power kW	Current A	Speed r/min	Eff %	Power factor	Locked rotor torque Rated torque	Locked rotor current Rated current	Breakdown torque Rated torque
Synchronous speed 1000r/min
YE2-450-6	500	949.5	990	96.4	0.83	1.6	6.5	2.4
YE2-450-6	560	1050.8	990	96.5	0.84	1.6	6.5	2.4
YE2-450-6	630	1180.9	990	96.5	0.84	1.6	6.5	2.4
YE2-450-6	710	1330.8	990	95.6	0.84	1.6	6.5	2.4
Synchronous speed 750r/min
YE2-80M1-8	0.18	0.88	645	51.0	0.61	1.8	3.3	1.9
YE2-80M2-8	0.25	1.15	645	54.0	0.61	1.8	3.3	1.9
YE2-90S-8	0.37	1.49	670	62.0	0.61	1.8	4.0	1.9
YE2-90L-8	0.55	2.17	670	63.0	0.61	1.8	4.0	2.0
YE2-100L1-8	0.75	2.4	680	71.0	0.67	1.8	4.0	2.0
YE2-100L2-8	1.1	3.4	680	73.0	0.69	1.8	5.0	2.0
YE2-112M-8	1.5	4.4	690	75.0	0.69	1.8	5.0	2.0
YE2-132S-8	2.2	6	705	78.0	0.71	1.8	6.0	2.0
YE2-132M-8	3	7.9	705	79.0	0.73	1.8	6.0	2.0
YE2-160M1-8	4	10.3	720	81.0	0.73	1.9	6.0	2.0
YE2-160M2-8	5.5	13.6	720	83.0	0.74	2.0	6.0	2.0
YE2-160L-8	7.5	17.8	720	85.5	0.75	2.0	6.0	2.0
YE2-180L-8	11	25.1	730	87.5	0.76	2.0	6.6	2.0
YE2-200L-8	15	34.1	730	88.0	0.76	2.0	6.6	2.0
YE2-225S-8	18.5	41.4	730	90.0	0.76	1.9	6.6	2.0
YE2-225M-8	22	47.4	730	90.5	0.78	1.9	6.6	2.0
YE2-250M-8	30	63.4	730	91.0	0.79	1.9	6.6	2.0
YE2-280S-8	37	77.8	740	91.5	0.79	1.9	6.6	2.0
YE2-280M-8	45	94.1	735	92.0	0.79	1.9	6.6	2.0
YE2-315S-8	55	111	735	92.8	0.81	1.8	6.6	2.0
YE2-315M-8	75	151	735	93.0	0.81	1.8	6.6	2.0
YE2-315L1-8	90	178	735	93.8	0.82	1.8	6.6	2.0
YE2-315L2-8	110	217	735	94.0	0.82	1.8	6.4	2.0
YE2-355M1-8	132	261	740	93.7	0.82	1.8	6.4	2.0
YE2-355M2-8	160	315	740	94.2	0.82	1.8	6.4	2.0
YE2-355L-8	200	387	740	94.5	0.83	1.8	6.4	2.0
YE2-400-8	220	439.8	745	95	0.8	1.6	6.5	2.5
YE2-400-8	250	498.7	745	95.2	0.8	1.6	6.5	2.5
YE2-400-8	280	558.6	745	95.2	0.8	1.6	6.5	2.5
YE2-400-8	315	628.4	745	95.2	0.8	1.6	6.5	2.4
YE2-400-8	355	705.3	745	95.6	0.8	1.6	6	2.4
YE2-400-8	400	794.7	745	95.6	0.8	1.6	6	2.5
YE2-450-8	400	794.7	740	95.9	0.8	1.6	6	2.4
YE2-450-8	450	869.5	740	96.2	0.82	1.6	6	2.4
YE2-450-8	500	963.1	740	96.2	0.82	1.6	6	2.4
YE2-450-8	560	1078.6	740	95.1	0.82	1.6	6	2.4

PERFORMANCE DATA 380V 50Hz

Type	Power kW	Current A	Speed r/min	Eff %	Power factor	Locked rotor torque Rated torque	Locked rotor current Rated current	Breakdown torque Rated torque
Synchronous speed 600r/min
YE2-315S-10	45	99.6	590	91.5	0.75	1.5	6.2	2.0
YE2-315M-10	55	121	590	92.0	0.75	1.5	6.2	2.0
YE2-315L1-10	75	162	590	92.5	0.76	1.5	6.2	2.0
YE2-315L2-10	90	191	590	93.0	0.77	1.5	6.2	2.0
YE2-355M1-10	110	230	590	93.2	0.78	1.3	6.0	2.0
YE2-355M2-10	132	275	590	93.5	0.78	1.3	6.0	2.0
YE2-355L-10	160	333	590	93.5	0.78	1.3	6.0	2.0
YE2-400-10	185	413.1	595	94.5	0.72	1.4	6.0	2.5
YE2-400-10	200	433.6	595	94.7	0.74	1.4	6.0	2.5
YE2-400-10	220	477.0	595	94.7	0.74	1.4	6.0	2.5
YE2-400-10	250	542.0	595	94.7	0.74	1.4	6.0	2.5
YE2-400-10	280	607.1	595	94.7	0.74	1.4	6.0	2.5
YE2-400-10	315	653.6	595	95.1	0.77	1.4	6.0	2.5
YE2-400-10	355	736.6	595	94.7	0.77	1.4	6.0	2.5
YE2-450-10	315	653.6	595	95.1	0.77	1.4	6.0	2.5
YE2-450-10	355	736.6	595	95.1	0.77	1.3	6.0	2.5
YE2-450-10	400	830.0	595	95.1	0.77	1.3	6.0	2.5
YE2-450-10	450	933.7	595	95.1	0.77	1.3	6.0	2.5
YE2-400-12	160	377.5	495	94.7	0.68	1.3	6.0	2.5
YE2-400-12	185	436.5	495	94.7	0.68	1.3	6.0	2.5
YE2-400-12	200	471.9	495	94.7	0.68	1.3	6.0	2.5
YE2-400-12	220	519.1	495	94.8	0.68	1.3	6.0	2.5
YE2-400-12	250	580.7	495	94.8	0.69	1.3	6.0	2.5
YE2-400-12	280	632.1	495	96.5	0.71	1.3	6.0	2.5
YE2-450-12	315	750.4	495	95.2	0.67	0.9	6.0	2.0
YE2-450-12	355	833.2	495	95.2	0.68	0.9	6.0	2.0
YE2-450-12	400	925.2	495	95.2	0.69	0.9	6.0	2.0

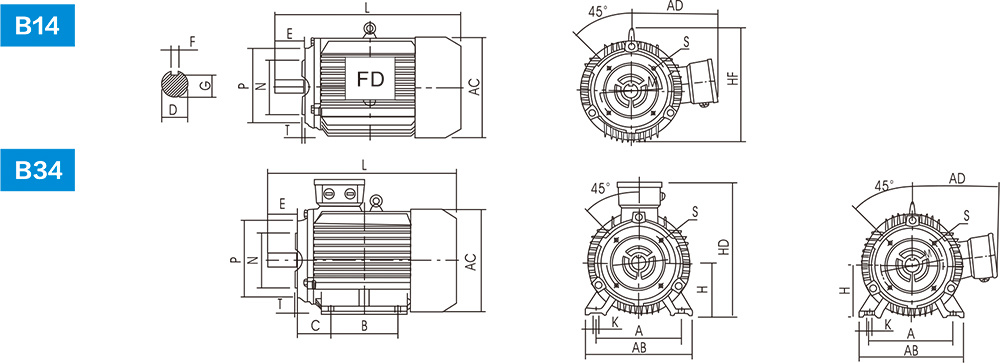

OVERALL&INSTALLATION DIMENSION(MM)

Frame	Pole	Mounting Dimension																Overall Dimension
Frame	Pole	A	B	C	D	E	F	G	H	M	N	P	R	S	T	K	Number of flange holes	AB	AC	AD	HD	HF	L
63M	2.4	110	80	40	11	23	4	8.5	63	75	60	90	0	M5	2.5	7	4	135	130	70	180	130	230
71M	2.4.6	112	90	45	14	30	5	11	71	85	70	105	0	M6	2.5	7	4	150	145	80	195	145	255
80M	2.4.6.8	125	100	50	19	40	6	15.5	80	100	80	120	0	M6	3	10	4	165	175	145	214	185	295
90S	2.4.6.8	140	100	56	24	50	8	20	90	115	95	140	0	M8	3	10	4	180	195	155	250	195	320
90L	2.4.6.8	140	125	56	24	50	8	20	90	115	95	140	0	M8	3	10	4	180	195	155	250	195	345
100L	2.4.6.8	160	140	63	28	60	8	24	100	130	110	160	0	M8	3.5	12	4	205	215	180	270	245	385
112M	2.4.6.8	190	140	70	28	60	8	24	112	130	110	160	0	M8	3.5	12	4	230	240	190	300	265	400

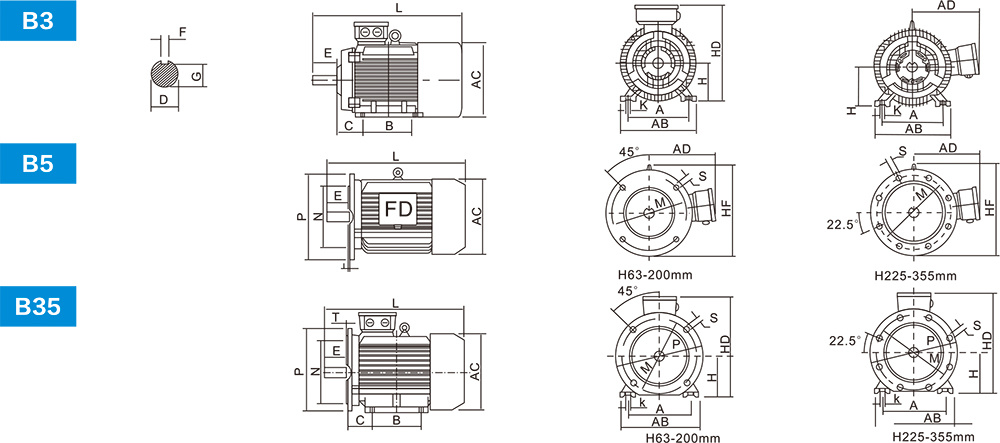

OVERALL&INSTALLATION DIMENSION(MM)

Frame	Pole	Mounting Dimension											Overall Dimension
Frame	Pole	A	B	C	D	E	F	G	H	M	N	P	R	S	T	K	AB	AC	AD	HD	HF	L
63M	2.4	100	80	40	11	23	4	8.5	63	115	95	140	0	10	3	7	135	130	70	180	130	230
71M	2.4.6	112	90	45	14	30	5	11	71	130	110	160	0	10	3.5	7	150	145	80	195	145	255
80M	2.4.6.8	125	100	50	19	40	6	15.5	80	165	130	200	0	12	3.5	10	165	175	145	220	185	295
90S	2.4.6.8	140	100	56	24	50	8	20	90	165	130	200	0	12	3.5	10	180	195	155	250	195	320
90L	2.4.6.8	140	125	56	24	50	8	20	90	165	130	200	0	12	3.5	10	180	195	155	250	195	345
100L	2.4.6.8	160	140	63	28	60	8	24	100	215	180	250	0	15	4	12	205	215	180	270	245	385
112M	2.4.6.8	190	140	70	28	60	8	24	112	215	180	250	0	15	4	12	230	240	190	300	265	400
132S	2.4.6.8	216	140	89	38	80	10	33	132	265	230	300	0	15	4	12	270	275	210	345	315	470
132M	2.4.6.8	216	178	89	38	80	10	33	132	265	230	300	0	15	4	12	270	275	210	345	315	510
160M	2.4.6.8	254	210	108	42	110	12	37	160	300	250	350	0	19	5	15	320	330	255	420	385	615
160L	2.4.6.8	254	254	108	42	110	12	37	160	300	250	350	0	19	5	15	320	330	255	420	385	670
180M	2.4.6.8	279	241	121	48	110	14	42.5	180	300	250	350	0	19	5	15	355	380	280	455	430	700
180L	2.4.6.8	279	279	121	48	110	14	42.5	180	300	250	350	0	19	5	15	355	380	280	455	430	740
200L	2.4.6.8	318	305	133	55	110	16	49	200	350	300	400	0	19	5	19	395	420	305	505	480	770
225S	4.8	356	286	149	60	140	18	53	225	400	350	450	0	19	5	19	435	470	335	560	535	815
225M	2	356	311	149	55	110	16	49	225	400	350	450	0	19	5	19	435	470	335	560	535	820
225M	4.6.8	356	311	149	60	140	18	53	225	400	350	450	0	19	5	19	435	470	335	560	535	845
250M	2	406	349	168	60	140	18	53	250	500	450	550	0	19	5	24	490	510	370	615	595	910
250M	4.6.8	406	349	168	65	140	18	58	250	500	450	550	0	19	5	24	490	510	370	615	595	910
280S	2	457	368	190	65	140	18	58	280	500	450	550	0	19	5	24	550	580	410	680	650	985
280S	4.6.8	457	368	190	75	140	20	67.5	280	500	450	550	0	19	5	24	550	580	410	680	650	985
280M	2	457	419	190	65	140	18	58	280	500	450	550	0	24	5	19	550	580	410	680	650	1035
280M	4.6.8.10	457	419	190	75	140	20	67.5	280	500	450	550	0	24	5	19	550	580	410	680	650	1035
315S	2	508	406	216	65	140	18	58	315	600	550	660	0	24	6	28	635	645	530	845	—	1160
315S	4.6.8.10	508	406	216	80	170	22	71	315	600	550	660	0	24	6	28	635	645	530	845	—	1270
315M	2	508	457	216	65	140	18	58	315	600	550	660	0	24	6	28	635	645	530	845	—	1190
315M	4.6.8.10	508	457	216	80	170	22	71	315	600	550	660	0	24	6	28	635	645	530	845	—	1300
315L	2	508	508	216	65	140	18	58	315	600	550	660	0	24	6	28	635	645	530	845	—	1190
315L	4.6.8.10	508	508	216	80	170	22	71	315	600	550	660	0	24	6	28	635	645	530	845	—	1300
355M	2	610	560	254	75	140	20	67.5	355	740	680	800	0	24	6	28	730	710	655	1010	—	1500
355M	4.6.8.10	610	560	254	95	170	25	86	355	740	680	800	0	24	6	28	730	710	655	1010	—	1530
355L	2	610	630	254	75	140	20	67.5	355	740	680	800	0	24	6	28	730	710	655	1010	—	1500
355L	4.6.8.10	610	630	254	95	170	25	86	355	740	680	800	0	24	6	28	730	710	655	1010	—	1530

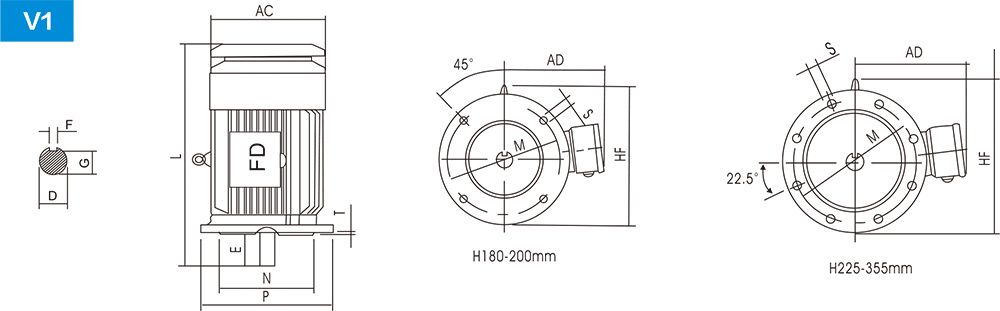

OVERALL&INSTALLATION DIMENSION(MM)

Frame	Pole	Mounting Dimension											Overall Dimension
		D	E	F	G	M	N	P	R	S	T	Number of flange holes	AC	AD	HF	L
180M	2.4.6.8	48	110	14	42.5	300	250	350	0	19	5	4	380	280	500	760
180L	2.4.6.8	48	110	14	42.5	300	250	350	0	19	5	4	380	280	500	800
200L	2.4.6.8	55	110	16	49	350	300	400	0	19	5	4	420	305	550	840
225S	4.8	60	140	18	53	400	350	450	0	19	5	8	470	335	610	905
225M	2	55	110	16	49	400	350	450	0	19	5	8	470	335	610	910
	4.6.8	60	140	18	53											935
250M	2	60	140	18	53	500	450	550	0	19	5	8	510	370	650	1015
	4.6.8	65	140	18	58
280S	2	65	140	18	58	500	450	550	0	19	5	8	580	410	720	1110
	4.6.8	75	140	20	67.5
280M	2	65	140	18	58	500	450	550	0	19	5	8	580	410	720	1150
	4.6.8	75	140	20	67.5
315S	2	65	140	18	58	600	550	660	0	24	6	8	645	530	900	1280
	4.6.8.10	80	170	22	71											1510
315M	2	65	140	18	58	600	550	660	0	24	6	8	645	530	900	1310
	4.6.8.10	80	170	22	71											1430
315L	2	65	140	18	58	600	550	660	0	24	6	8	645	530	900	1310
	4.6.8.10	80	170	22	71											1430
355M	2	75	140	20	67.5	740	680	800	0	24	6	8	710	655	1010	1640
	4.6.8.10	95	170	25	86											1670
355L	2	75	140	20	67.5	740	680	800	0	24	6	8	710	655	1010	1640
	4.6.8.10	95	170	25	86											1670

* DATA SUBJECT TO CHANGE WITHOUT NOTICE

MOUNTING ARRANGEMENTS OF THE MOTORS

Conventional mounting type and suitable frame size are given in following table(with"√")

Frame

Basic Type

DerivedType

B35

V15

V36

B14

B34

V18

63~112

√

132~160

√

一

180~280

√

一

315~355

√

一

√

一

OVERALL&INSTALLATION DIMENSION(MM)

TAG:

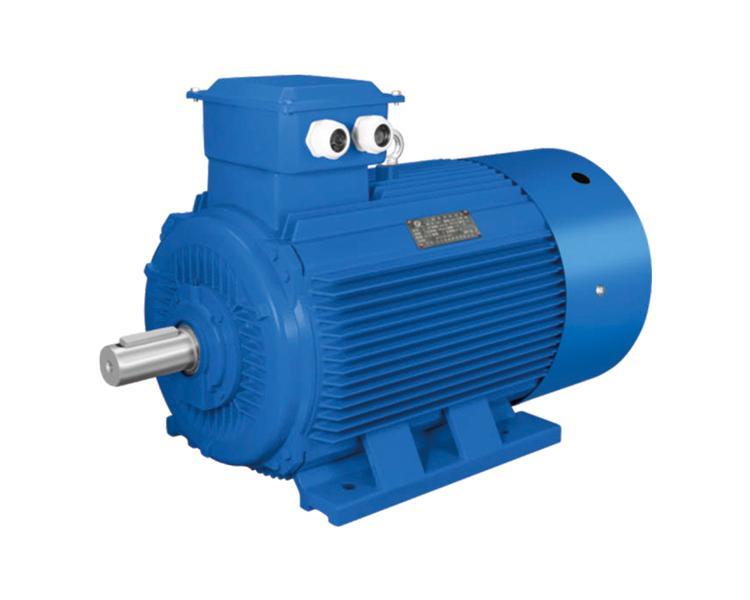

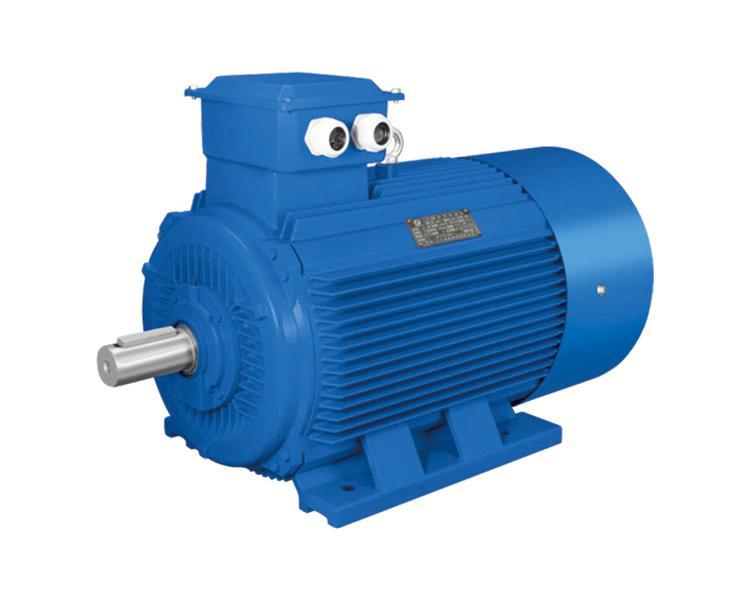

YE2 SERIES THREE PHASE INDUCTION MOTOR

Applications: General purpose including cutting machines, pumps, fans, conveyors, machines tools of farm duty and food process.
Features: High efficiency and energy saving, low noise and little vibration. Insulation class: F;Protection class:IP54 or IP55.
Circumstance for use: The altitude not exceeding 1000m above sea level. The ambient temperature subject to seasonal variations but not exceeding+40℃ and not less than-15℃.

E-mail: sales@motor-supplier.com

Tel: +86-576-86353833

Feedback

We will get in touch with you within one business day. Please pay attention to your email.

Send

Related Products

YC SERIES CAPACITOR START INDUCTION MOTOR

YL SERIES TWO-VALUE CAPACITOR INDUCTION MOTOR

YE2 SERIES THREE PHASE INDUCTION MOTOR

YE3 SERIES THREE PHASE INDUCTION MOTOR

Tel:+86-576-86355888

E-mail:sales@motor-supplier.com

Daxi Industrial District, Daxi Town, Wenling City, Zhejiang, China

Three - phase asynchronous motor series

Single - phase asynchronous motor series

Special - purpose motor series

Special -type motor series

Socialt Media

License

SEO | Powered by 300.cn

13958602659

sales@motor-supplier.com

+86-576-86355888

COOKIES

Our website uses cookies and similar technologies to personalize the advertising shown to you and to help you get the best experience on our website. For more information, see our Privacy & Cookie Policy

COOKIES

Required

These cookies are necessary for basic functions such as payment. Standard cookies cannot be turned off and do not store any of your information.

Analyze

These cookies collect information, such as how many people are using our site or which pages are popular, to help us improve the customer experience. Turning these cookies off will mean we can't collect information to improve your experience.

Feature

These cookies enable the website to provide enhanced functionality and personalization. They may be set by us or by third-party providers whose services we have added to our pages. If you do not allow these cookies, some or all of these services may not function properly.

Advertise

These cookies help us understand what you are interested in so that we can show you relevant advertising on other websites. Turning these cookies off will mean we are unable to show you any personalized advertising.

Inquiry

Please provide the correct contact information so that our customer service staff can contact you promptly.

Name

Telephone / WhatsApp

E-mail

Address

Content

条款协议

Este formulario recoge su nombre y correo electrónico para que podamos procesar su solicitud. Marcar esta casilla significa que está de acuerdo con nosotros en hacerlo.

Submit

%{tishi_zhanwei}%
