Y SERIES THREE PHASE INDUCTION MOTOR
+
  • Y SERIES THREE PHASE INDUCTION MOTOR

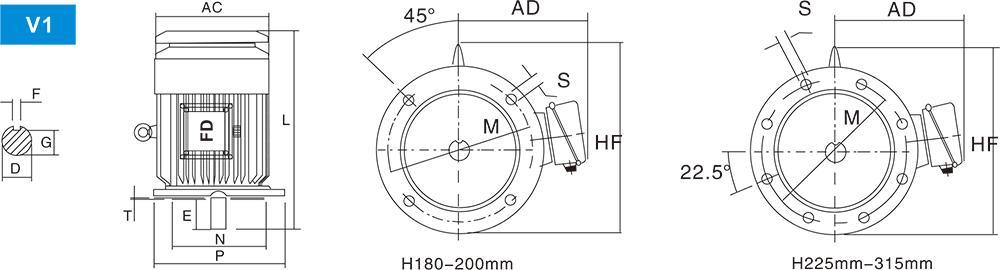

  OVERALL&INSTALLATION DIMENSION(MM)





Frame Pole Mounting Dimension Overall Dimension
D E F G M N P R S T Number of flange holes AC AD HF  L
180M 2.4.6.8 48  110  14  42.5  300  250  350  0  19  5  4  380  285  500  730
180L 2.4.6.8 48  110  14  42.5  300  250  350  0  19  5  4  380  285  500  770
200L 2.4.6.8 55  110  16  49  350  300  400  0  19  5  4  420  315  550  850
225S 4.8  60  140  18  53  400  350  450  0  19  5  8  475  345  610  910
225M 2  55  110  16  49  400  350  450  0  19  5  8  475  345  610  905
4.6.8 60  140  18  53  935
250M 2  60  140  18  53  500  450  550  0  19  5  8  515  385  650  1035
4.6.8 65  140  18  58
280S 2  65  140  18  58  500  450  550  0  19  5  8  580  410  720  1120
4.6.8 75  140  20  67.5
280M 2  65  140  18  58  500  450  550  0  19  5  8  580  410  720  1170
4.6.8 75  140  20  67.5
315S 2  65  140  18  58  600  550  660  0  24  6  8  645  576  900  1360
4.6.8.10 80  170  22  71  1390
315M 2  65  140  18  58  600  550  660  0  24  6  8  645  576  900  1460
4.6.8.10 80  170  22  71  1490
315L 2  65  140  18  58  600  550  660  0  24  6  8  645  576  900  1460
4.6.8.10 80  170  22  71  1490

TAG:

Y SERIES THREE PHASE INDUCTION MOTOR
+
  • Y SERIES THREE PHASE INDUCTION MOTOR

Y SERIES THREE PHASE INDUCTION MOTOR

Applications: General purpose including cutting machines, pumps, fans, conveyors, machines tools of farm duty and food process.
Features: Insulation class:F; Protection class:IP54
Circumstance For Use:The altitude not exceeding 1000m above sea level.The ambient temperature subject to seasonal variations but not exceeding +40℃ and not less than -15℃.
