JY Series Single-Phase Capacitor Start Induction Motor
+
  • JY Series Single-Phase Capacitor Start Induction Motor
Product details Installation Dimension Mounting arrangements

PERFORMANCE DATA                                         220V    50Hz

Frame Type Power Speed
r/min		 Eff
%		 Power factor Locked rotor torque
Rated torque		 Breakdown torque
Rated torque
HP Kw
2 JY2A-2 1.5 1.1 2850 0.77 71 2-3.5 1.8-2
JY2B-2 1 0.75 2850 0.75 70 2-3.5 1.8-2
JY2A-4 1 0.75 1400 0.68 69 2-3.5 1.8-2
JY2B-4 3/4 0.55 1400 0.68 67 2-3.5 1.8-2.
1 JY1A-2 3/4 0.55 2800 0.72 66 2-3.5 1.8-2
JY1B-2 1/2 0.37 2800 0.72 66 2-3.5 1.8-2
JY1A-4 1/2 0.37 1400 0.62 64 2-3.5 1.8-2
JY1B-4 1/3 0.25 1400 0.62 60 2-3.5 1.8-2
09 JY09A-2 1/3 0.25 2800 0.72 63 2-3.5 1.8-2
JY09B-2 1/4 0.18 2800 0.72 60 2-3.5 1.8-2
JY09A-4 1/4 0.18 1400 0.62 56 2-3.5 1.8-2

Note:" The motor is designed according to powersupplies 220V/1 1 0V ,50Hz,Special design may be accommodatedwith the customers, particular requirements as 230V ,50Hz or 220V/1 10V , 60Hz,etc.

keywords：motor,purpose motor,special type motor series

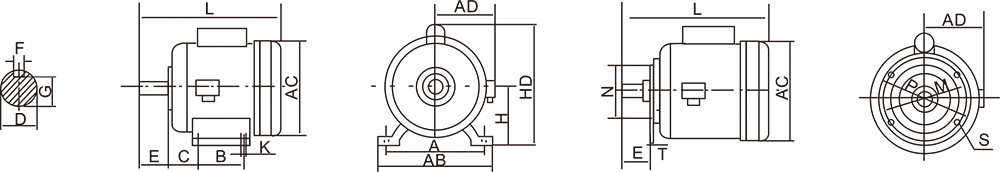

  OVERALL&INSTALLATION DIMENSION(mm):



Frame Mounting Dimension Overall Dimension
A B C D E F G H K M N P R S T AB AC AD HD L
2  160  112  63  19  40  6  21.5  100  12  115  95  140  0  M8 3  190  190  128  246  330
1  140  100  56  16  40  5  18  90  10  100  80  120  0  M8 3  176  176  121  220  286
09  125  100  50  14  30  4  15.5  80  10  85  70  105  0  M8 3  156  156  108  190  258
JY Series Single-Phase Capacitor Start Induction Motor
+
  • JY Series Single-Phase Capacitor Start Induction Motor

JY Series Single-Phase Capacitor Start Induction Motor

JY series single-phasecapacitor started asynchronous induction motor is suitable for and places where a larger starting torque and a limited starting current are required, and can be used as driving motor of air compressors,refrigerators, medical apparatus and any other small machines which demand full load starting.
These series motors have 3 types of frame sizes 09,1 and 2,are totally enclosed fan-cooled.The frames can be of cast iron or cast aluminum depending on the requests of customers.
