YCT SERIES ELECTROMAGNETIC SPEED ADJUSTABLE MOTOR
+
  • YCT SERIES ELECTROMAGNETIC SPEED ADJUSTABLE MOTOR

PERFORMANCE DATA                                            380V  50Hz

Type Nominal Output
kW		 Rated torque
N.m		 Speed Range
r/min
YCT112-4A 0.55 3.6 1230~125
YCT112-4B 0.75 4.9 1230~125
YCT132-4A 1.1 7.1 1230~125
YCT132-4B 1.5 9.7 1230~125
YCT160-4A 2.2 14.1 1230~125
YCT160-4B 3 19.2 1230~125
YCT180-4A 4 25.2 1230~125
YCT200-4A 5.5 36.1 1230~125
YCT200-4B 7.5 47.7 1230~125
YCT225-4A 11 69 1230~125
Type Nominal Output
kW		 Rated torque
N.m		 Speed Range
r/min
YCT225-4B 15 94 1250~125
YCT250-4A 18.5 110 1320~132
YCT250-4B 22 137 1320~132
YCT280-4A 30 189 1320~132
YCT315-4A 37 232 1320~132
YCT315-4B 45 282 1320~132
YCT355-4A 55 344 1340~440
YCT355-4B 75 469 1340~440
YCT355-4C 90 564 1340~600

1、The nominal output is the rated output of the driving motor.
The output of the regulating shaft is.

P₂-Output power, kW
T₂-Output torque, N.m
n₂-Output speed, r/min

2、All data subject to change without notice.Use only certified data for purchases.



OVERALL&INSTALLATION DIMENSION(MM)

Model CTK(JD1) eddy-current coupling drive controllers







TECHNICAL DATA                                            380V  50Hz

Type CTK-A30
(JD1A-40)		 CTK-A90
(JD1A-90)		 CTK-B30
(JD1B-40)		 CTK-B90
(JD1B-90)
Input power VoltageV 220±10%
requencyHz 50±2%
Rated OutputDC VoltageV ≥80
CurrentA 4 6.3 4 6.3
Power range of controlled motor kW 0.55~30 37~90 0.55~30 37~90
Speed variation ratio% 2.5 1.0
Accuracy of speed stability% ≤1
Terminal Mark input:
1:phase terminal
2:zero line		 output:
3+
4-		 techogenerator
5
6
7


The output current of the controller can be withstanding 20% overload within 10min.



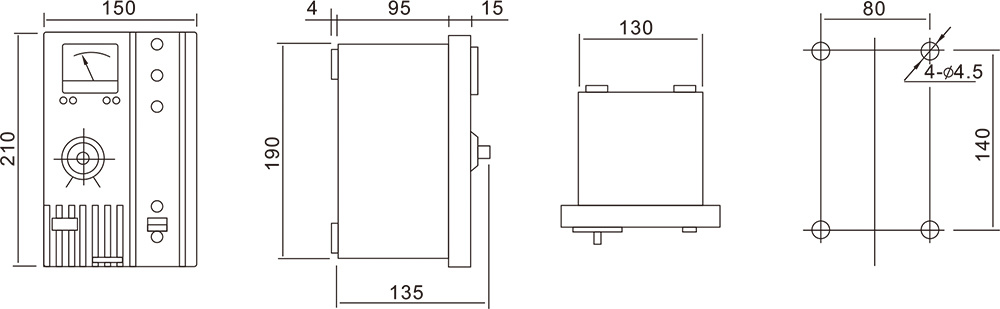

  OVERALL&INSTALLATION DIMENSION(MM)

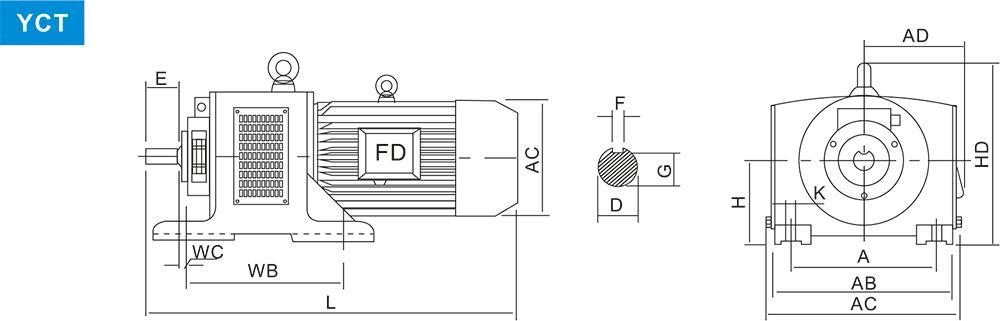

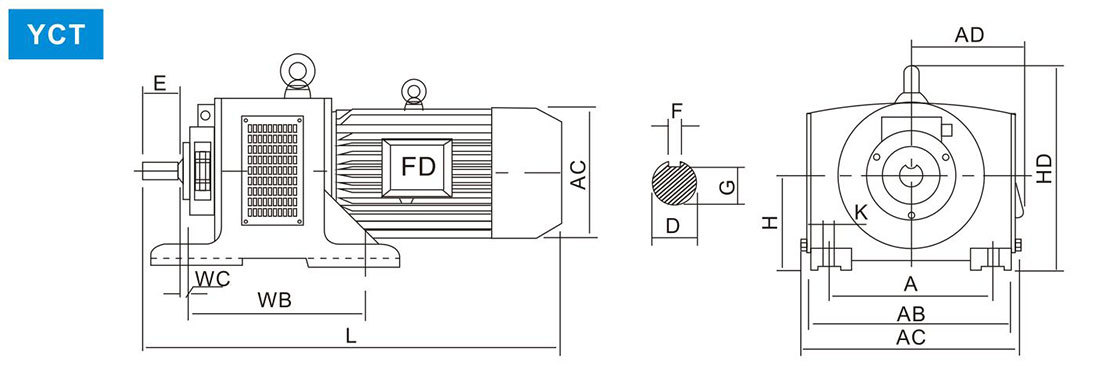

Type Mounting Dimension OverallDimension
A WB WC E H D F G  K AB AC AD HD   L
YCT112-4A 190  210  40  40  112  19  6  15.5   12  240  260  150  280  520
YCT112-4B 190  210  40  40  112  19  6  15.5   12  240  260  150  280  520
YCT132-4A 216  241  40  50  132  24  8  20   12  285  310  165  330  570
YCT132-4B 216  241  40  50  132  24  8  20   12  285  310  165  330  585
YCT160-4A 254  267  45  60  160  28  8  24   15  330  350  185  385  665
YCT160-4B 254  267  45  60  160  28  8  24   15  330  350  185  385  665
YCT180-4A 279  305  45  60  180  28  8  24   15  365  385  195  430  700
YCT200-4A 318  356  50  80  200  38  10  33   19  410  430  235  485  820
YCT200-4B 318  356  50  80  200  38  10  33   19  410  430  235  485  860
YCT225-4A 356  406  56  110  225  42  12  37   19  465  485  270  545  980
YCT225-4B 356  406  56  110  225  42  12  37   19  465  485  270  545  1025
YCT250-4A 406  457  63  110  250  48  14  42.5   24  520  540  295  595  1130
YCT250-4B 406  457  63  110  250  48  14  42.5   24  520  540  295  595  1170
YCT280-4A 457  508  70  110  280  55  16  49   24  575  595  320  665  1280
YCT315-4A 508  560  89  140  315  60  18  53   28  645  670  345  770  1400
YCT315-4B 508  560  89  140  315  60  18  53   28  645  670  345  770  1425
YCT355-4A 610  630  108  140  355  65  18  58   28  755  780  390  890  1550
YCT355-4B 610  630  108  140  355  75  20  67.5   28  755  780  420  890  1630
YCT355-4C 610  630  108  140  355  75  20  67.5   28  755  780  420  890  1680

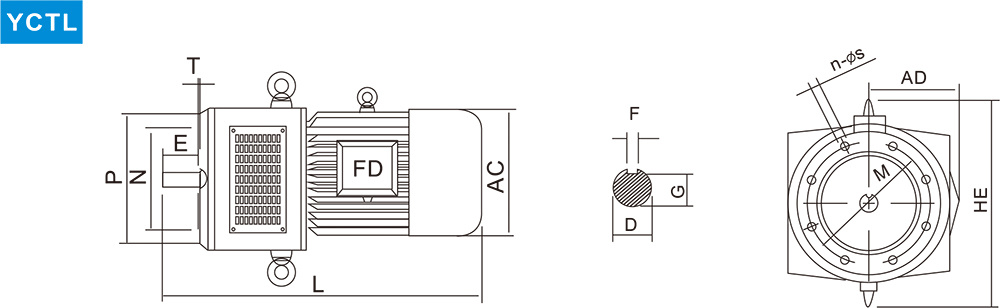

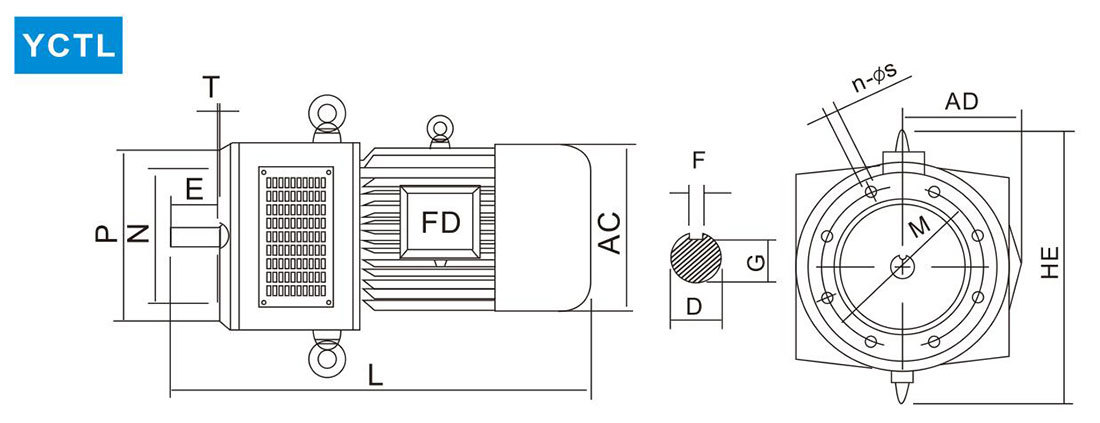

Type Mounting Dimension Overall Dimension
D E   F G M N P n S T AC/2 AD HE L
YCT112-4A 19  40    6  15.5  215  180  250  4  15  4  125  150  333  515
YCT112-4B 19  40    6  15.5  215  180  250  4  15  4  125  150  333  515
YCT132-4A 24  50    8  20  215  180  250  6  15  4  142  155  391  580
YCT132-4B 24  50    8  20  215  180  250  6  15  4  142  155  391  580
YCT160-4A 28  60    8  24  265  230  300  6  15  4  165  185  445  620
YCT160-4B 28  60    8  24  265  230  300  6  15  4  165  185  445  665
YCT180-4A 28  60    8  24  265  230  300  6  15  5  180  190  485  670
YCT200-4A 38  80    10  33  300  250  350  6  19  5  205  210  530  840
YCT200-4B 38  80    10  33  300  250  350  6  19  5  205  210  530  840
YCT225-4A 42  110    12  37  350  300  400  6  19  5  225  255  582  970
YCT225-4B 42  110    12  37  350  300  400  6  19  5  225  255  582  1015
YCT250-4A 48  110    14  42.5  400  350  450  8  19  5  250  285  642  1130
YCT250-4B 48  110    14  42.5  400  350  450  8  19  5  250  285  642  1170
YCT280-4A 55  110    16  49  450  400  500  8  19  5  286  320  740  1270

TAG:

YCT SERIES ELECTROMAGNETIC SPEED ADJUSTABLE MOTOR
+
  • YCT SERIES ELECTROMAGNETIC SPEED ADJUSTABLE MOTOR

YCT SERIES ELECTROMAGNETIC SPEED ADJUSTABLE MOTOR

Applications: fans, pumps and such instruments with decreasing load.
Features: Stepless adjustable speed with constant torque. Ease to operation.
Circumstance for use: The altitude not exceeding1000m above sea level. The ambient temperature subject to seasonal variations but not exceeding +40℃.Less dust, no ferromagnetic dust ,no corrosive metal undermine the insulation ,no explosive gas.
