YL SERIES TWO-VALUE CAPACITOR INDUCTION MOTOR
+
  • YL SERIES TWO-VALUE CAPACITOR INDUCTION MOTOR

PERFORMANCE DATA                                         220V    50Hz



Type Power
kW		 Rated current
A		 Speed
r/min		 Eff
%		 Power factor Locked rotor torque
Rated torque		 Locked rotor current
A
YL711-2 0.37 2.2 2800 67 0.92 1.8 16
YL712-2 0.55 3.9 2800 70 0.92 1.8 21
YL801-2 0.75 4.9 2800 72 0.95 1.8 29
YL802-2 1.1 7.0 2800 75 0.95 1.8 40
YL90S-2 1.5 9.4 2800 76 0.95 1.7 55
YL90L-2 2.2 13.7 2800 77 0.95 1.7 80
YL100-2 3 18.2 2800 79 0.95 1.7 110
YL112M-2 4 26.6 2850 77 0.95 2.2 175
YL711-4 0.25 2.0 1400 62 0.82 1.8 12
YL712-4 0.37 2.8 1400 65 0.92 1.8 16
YL801-4 0.55 4.0 1400 68 0.92 1.8 21
YL802-4 0.75 5.1 1400 71 0.92 1.8 29
YL90-4 1.1 7.3 1400 73 0.95 1.7 40
YL90-4 1.5 9.7 1400 75 0.95 1.7 55
YL100L1-4 2.2 13.9 1400 76 0.95 1.7 80
YL112M-4 3 18.6 1400 77 0.95 1.7 110
YL132S-4 4 27.1 1400 78 0.77 2.2 175
YL132M-4 5.5 31.2 1400 78 0.79 2.2 200

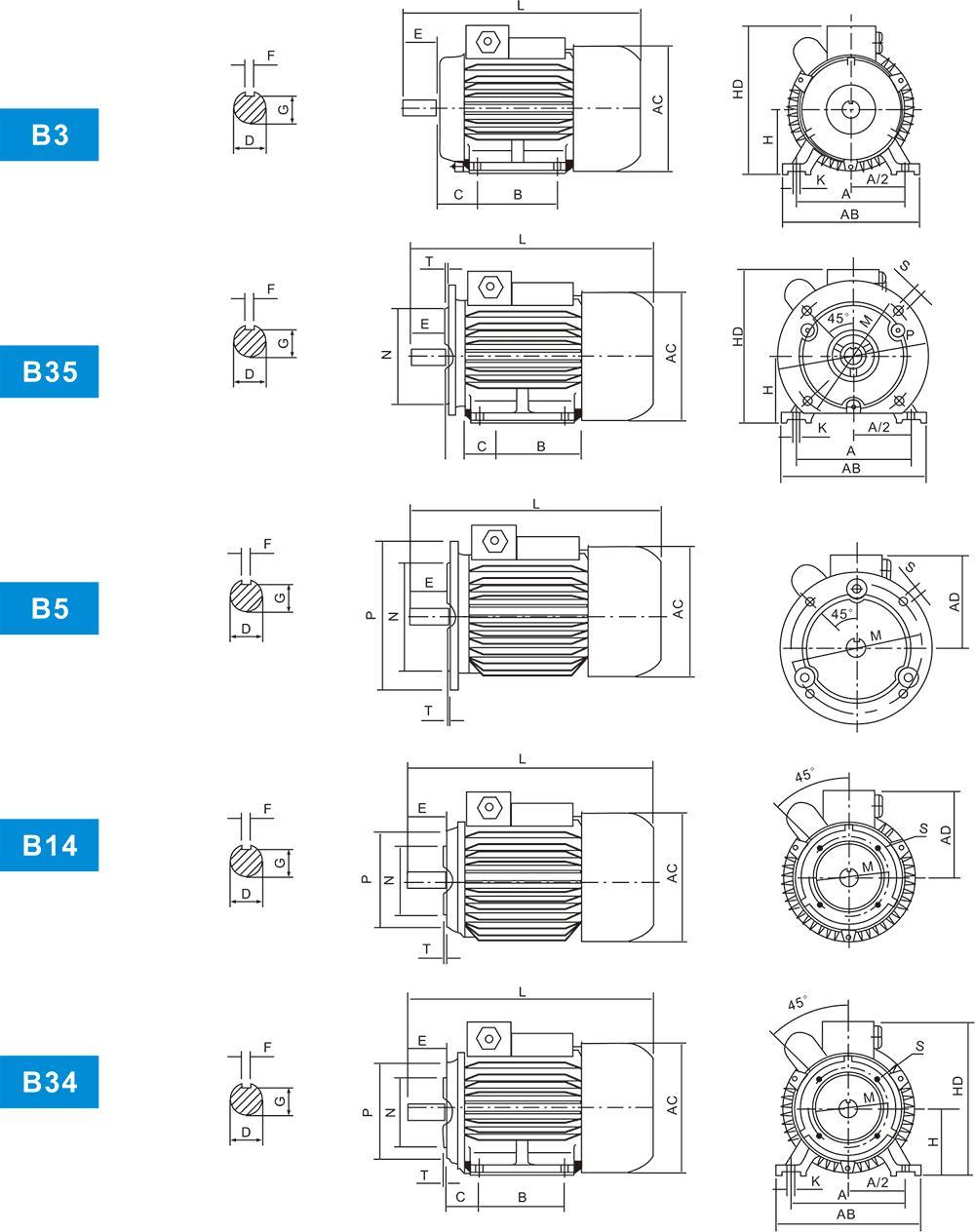

OVERALL&INSTALLATION DIMENSION(MM)





Mounting Dimension Overall Dimension
Frame IMB3 IMB14     IMB34 IMB5     IMB35 IMB3
A B C D E F G H K M N P R S T M N P R S T AB AC AD AE HD L
71  112  90  45  14  30  5  11  71  7  85  70  105  0  M6 2.5  130  110  160  一 10  3.5  145  145  140  95  180  255
80  125  100  50  19  40  6  15.5  80  10  110  80  120  0  M6 3  165  130  200  0  12  3.5  160  165  150  110  200  295
90S 140  100  56  24  50  8  20  90  10  115  95  140  0  M8 3  165  130  200  0  12  3.5  180  185  160  120  220  370
90L 140  125  56  24  50  8  20  90  10  115  95  140  0  M8 3  165  130  200  0  12  3.5  180  185  160  120  220  400
100L 160  140  63  28  60  8  24  100  12  一 一 一 一 一 一 215  180  250  0  15  4  205  200  180  130  260  430
112M 190  140  70  28  60  8  24  112  12  一 一 一 一 一 一 215  180  250  0  15  4  245  250  190  140  300  455
132S 216  140  89  38  80  10  33  132  12  一 一 一 一 一 一 265  230  300  0  15  4  280  290  210  155  350  525
132M 216  178  89  38  80  10  33  132  12  一 一 一 一 一 一 265  230  300  0  15  4  280  290  210  155  350  565

The other dimensions of IMB14,IMB34, and IMB 5 are the same as those of IMB3.



TAG:

YL SERIES TWO-VALUE CAPACITOR INDUCTION MOTOR
+
  • YL SERIES TWO-VALUE CAPACITOR INDUCTION MOTOR

YL SERIES TWO-VALUE CAPACITOR INDUCTION MOTOR

Product application areas: Air compressors, medical instruments and small machine tools, etc.
Product features: Outstanding performance of starting and operation low noise, compact dimensions and smooth running. Rated Voltage:220V
